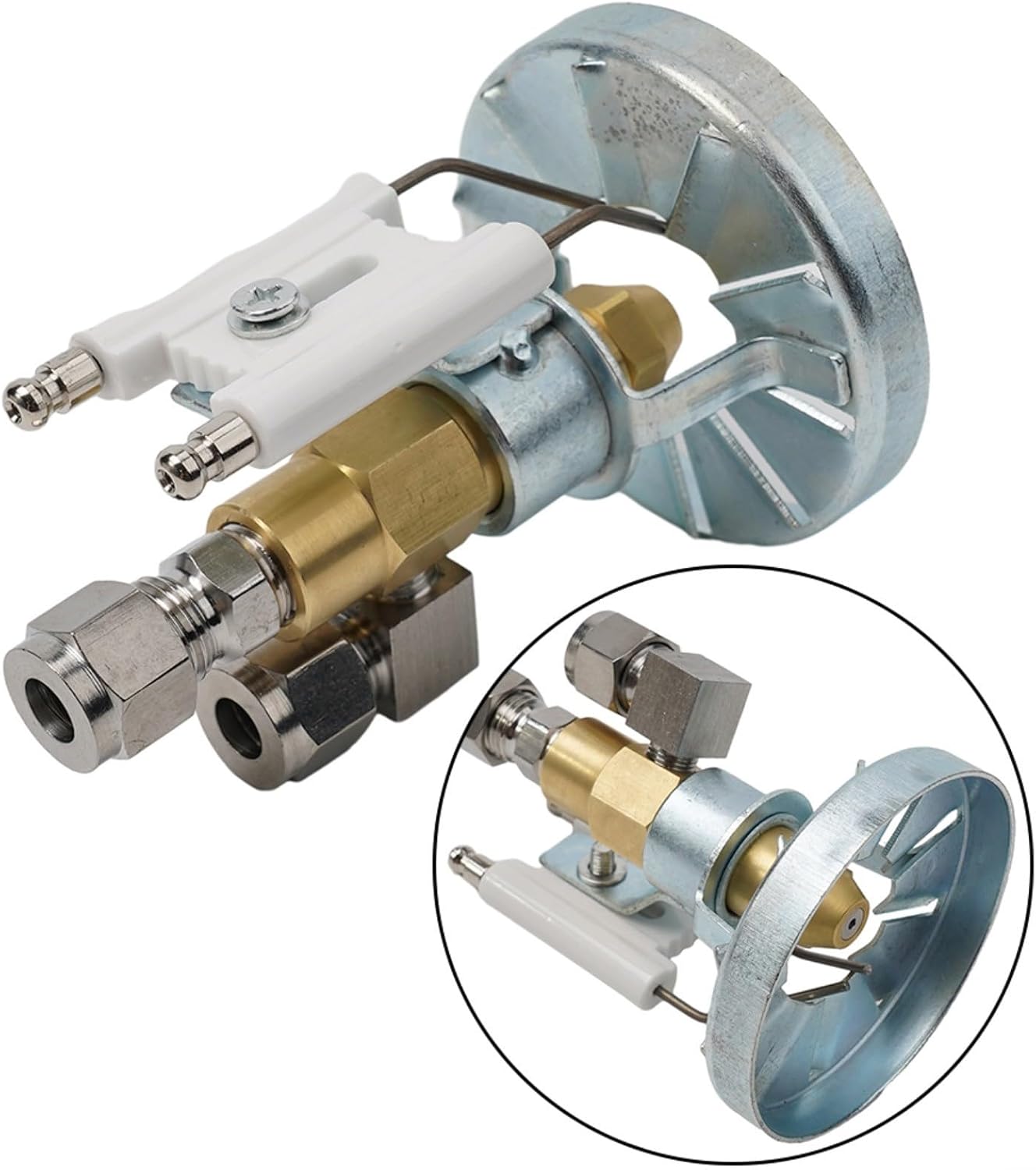

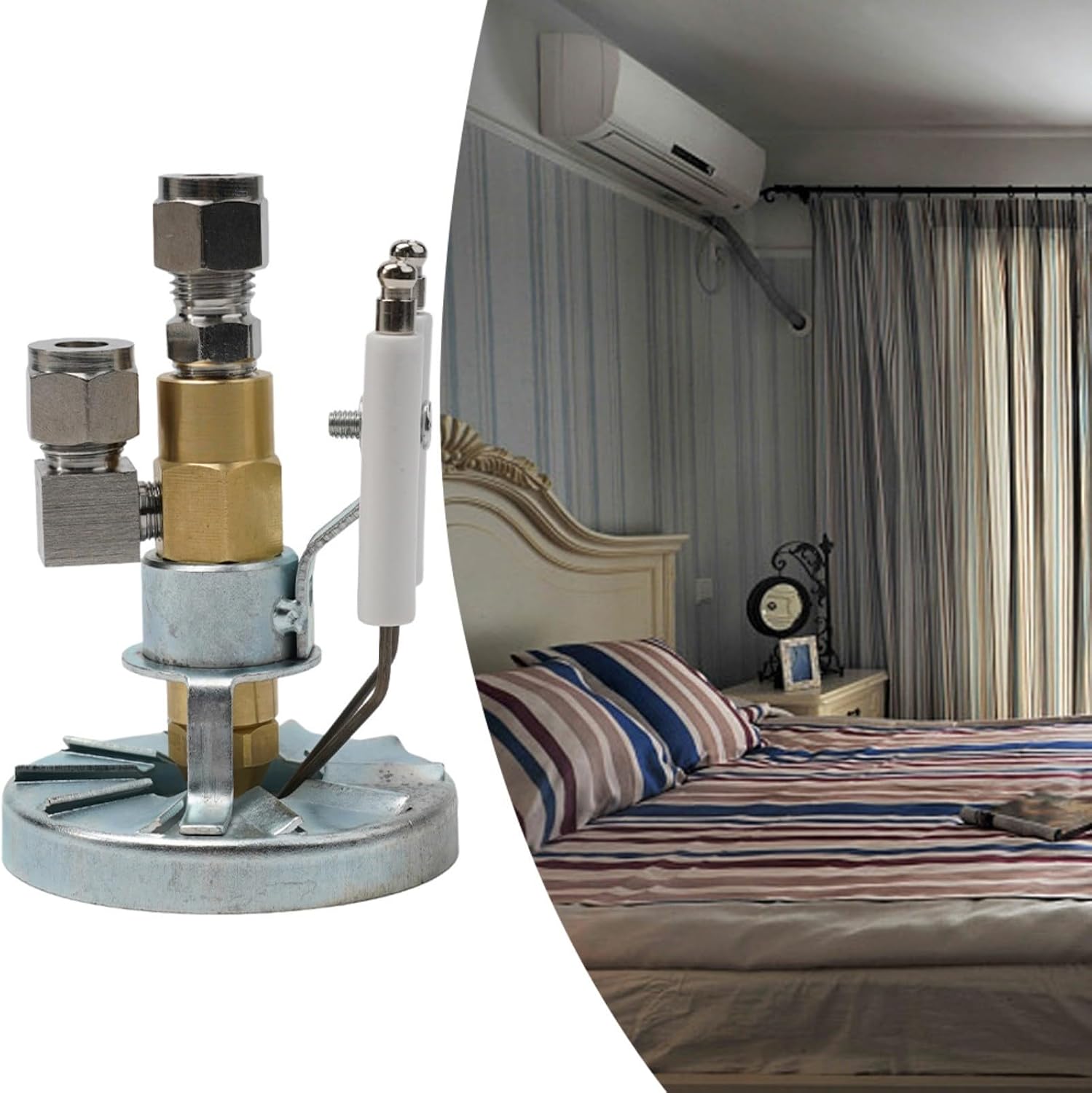

Waste Oil Burner Nozzle Siphon Air Atomizing Spray Nozzle Electrode 0.5-2.0MM,For Atomizing Heavy Oil Diesel Vegetable Oils In Heating Cooling Air Systems(0.5mm)
Product details
| Management number | 221133614 | Release Date | 2026/05/03 | List Price | US$10.55 | Model Number | 221133614 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Feature：*Using compressed air in the tube for Vortex and mixed atomization.*Can produce tiny -particle size fog particles under low pressure and low volume conditions.*Air flow and pressure can be controlled to adjust the spray flow, angle and size particles.*Good anti-clogging effect because of the high fluid passage through the nozzle.*It is very effective in atomizing heavy oil, waste oil burners, oil and other applications with high viscosity.*Widely used in diesel, heavy oil, waste oil, waste oil, animal and vegetable oils,and other alcohol-based fuel oil, gas, combustion spray s, spray workshop humidification cooling , mechanical cleaning dust.*Usually the working pressure is 3bar, and the waste fluid is 10L/H for the 1.00mm version. 19L/H for the 2.0mm version, and 28L/H for the 3.0mm version. 28L/H for the 3.0mm version. capacity tolerance is ±10%. The siphon height is 30cm, and the jet angle is 45 degrees.*Please note that the above data is based on water as a reference. If other liquids are used, the calculation can be done in proportion to the density.Details：*Material:Brass+aluminium*Hole diameter: 0.5mm,0.8mm,1.0mm, 1.2mm ,1.5mm,2.0mm*Outer diameter: 18mm*Overall length: 78mm*Nozzle size: 9/16"*Air inlet: 1/4", please insert Φ8mm or 6mm hose.*Oil inlet: 1/8", please insert Φ8mm or 6mm hose.*Color:Silver + goldA set of particle burner for Ignition including:Stainless steel Siphon Nozzle: 1 Piece(0.5mm,0.8mm,1.0mm, 1.2mm ,1.5mm,2.0mm.)Burner Flame Rings: 1Piecefor Ignition Needle: 1PiecePackage Contents:1Set nozzle
- [APPLICATIONS] This Waste Oil Burner Nozzle is for diesel, heavy oil, waste oil, and various alcohol-based fuels, making it suitable for diverse industrial applications.
- [PRECISION SPRAY ADJUSTMENT] This oil furnace nozzle
- Easily control spray flow, angle, and particle size by adjusting airflow and pressure to suit your specific requirements.
- [EFFECTIVE HEAVY OIL ATOMIZATION] Achieve optimal atomization even under low pressure conditions with this nozzle designed for high-viscosity atomizing liquid.
- [MATERIAL CONSTRUCTION] This Waste Oil Burner Nozzle mades from brass and aluminum, ensuring longevity and reliability in demanding environments.
- [SIZING REMINDER] Please check your sizing requirements rather than relying on Amazon's size chart.
| Size | 0.5mm |
|---|---|
| Set Name | 1 set |
| Brand Name | Deskbloom |
| Unit Count | 1.0 Count |
| Valve Type | Spray Nozzle |
| Item Weight | 326 Grams |
| Thread Size | 0.5mm |
| Thread Type | NPT |
| Manufacturer | Deskbloom |
| Model Number | 7Y46M6LH68GVY3N4YZLBX2508L6 |
| Material Type | Aluminum, Brass |
| Connector Type | Hose |
| Exterior Finish | Brass, Aluminum |
| Item Dimensions | 5.91 x 3.94 x 1.97 inches |
| Number of Ports | 2 |
| Maximum Pressure | 3 Bars |
| Number of Pieces | 1 |
| Specification Met | MSS SP 72, MSS SP 80 |
| Outlet Connection Type | Hose |
| Manufacturer Part Number | 7Y46M6LH68GVY3N4YZLBX2508L6 |
